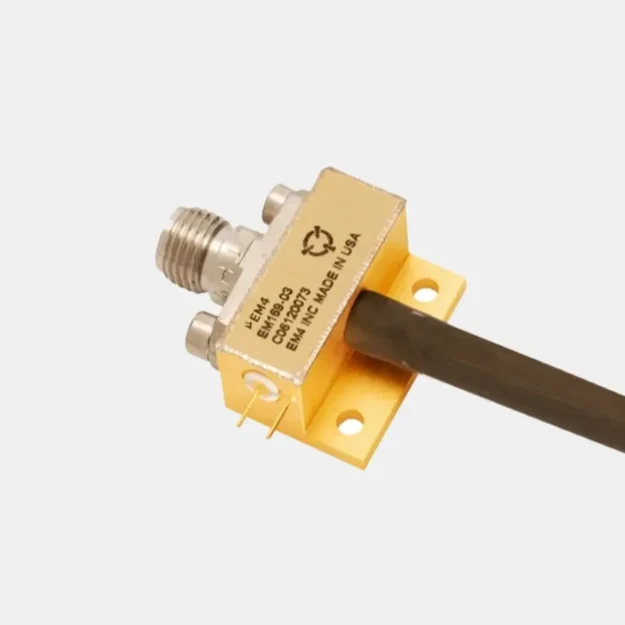

EM169 Photodetector
- 6mW max power handling
- Responsivity >0.80 A/W
- Extended temperature range
- SMF-28, PM, or specialty MFD fiber

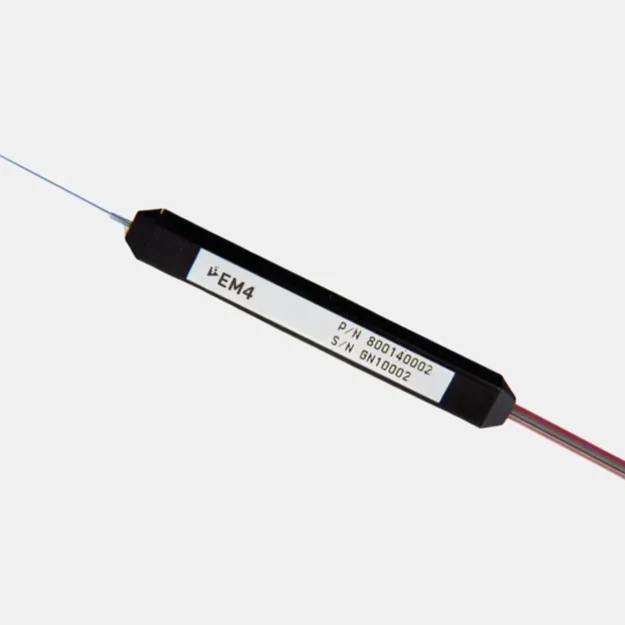

Planar Lightwave Circuit
Standard Series (81)
- Dual band:1260-1360nm, 1480-1580nm
- 1060nm (1×4 & 1×8 only)
- 1×4, 1×8, 1×32, 2xN, Custom
- I.L. < 10.5dB for 1x8
PM Planar Lightwave Circuit
High Grade Series (85)
- Single band:1310nm +/- 50nm or 1550 +/-50nm
- 1×4, 1×8
- High PER > 20dB
808 nm Cooled Multi-Mode Lasers EM339
- 3 W (808 nm) output power
- Cooled
- Built-in thermistor
- PM fiber, 0.22 na
9XX Cooled Multi-Mode Lasers EM33X
- High power 7 W (975 nm) and 8 W (915, 940, 960 nm) operating power options
- Cooled
- Built-in thermistor
- PM fiber, 0.15 na or 0.22 na

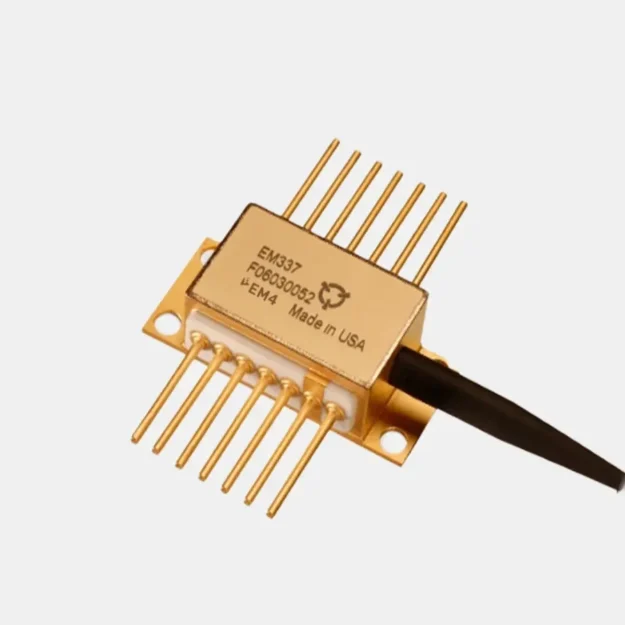

9XX Uncooled Multi-Mode Lasers EM32X
- High power 6 W (975 nm) and 7 W (915, 940, 960 nm) operating power options
- Uncooled
- Built-in thermistor
- PM fiber, 0.15 na or 0.22 na

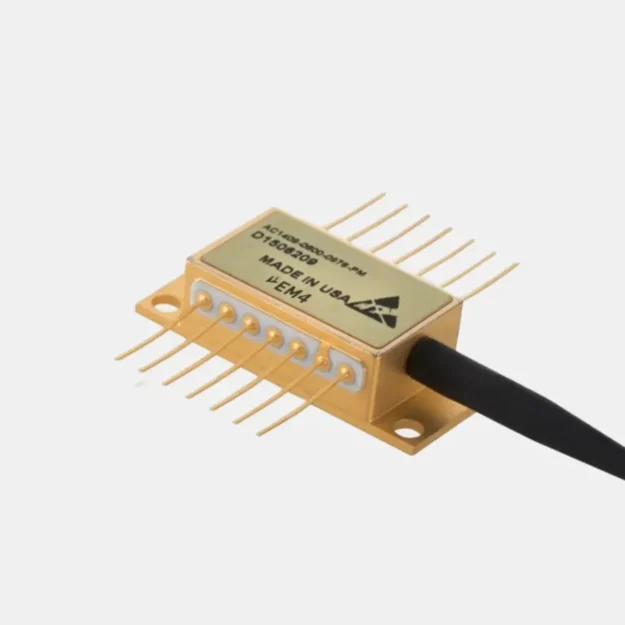

9XX Cooled Single Mode Pump Lasers AC1409
- 600 mW and 700 mW operating power options
- Cooled
- Built-in thermistor
- 980 nm availability
- PM fiber
EM655 Series
- Laser driver with integrated AA07XX laser
- Lower line width <1 MHz
- C-band (1537-1565 nm) wavelength with 10 mW output power
- 1310 nm with 18 mW output power
- Integrated current source, temperature controller, and detector amplifier
- PM and SM fiber options with or without furcation tubing
- Operates from single +5 V supply
