FA1401 High Power DFB Laser
- C-band wavelengths (1545-1565 nm)
- 120 mW output power
- Low RIN
- PM250 fiber
- Laser welded and hermetically sealed
- Built-in thermistor and monitor photodiode

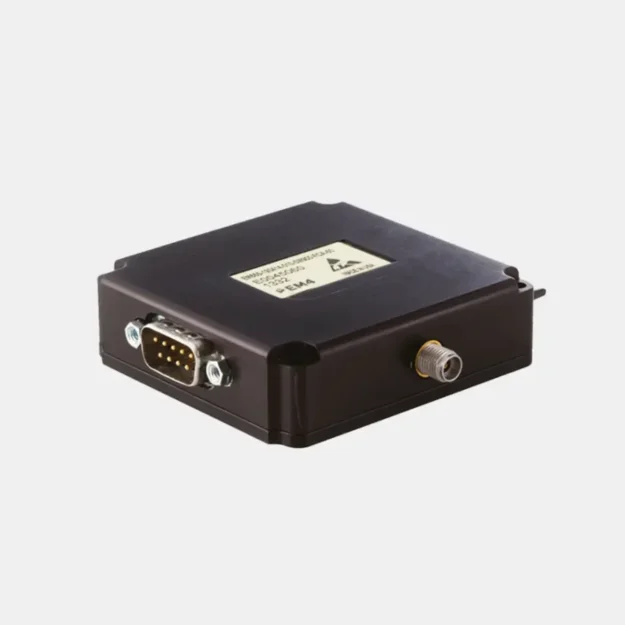

EM655 Series
- Laser driver with integrated AA07XX laser
- Lower line width <1 MHz
- C-band (1537-1565 nm) wavelength with 10 mW output power
- 1310 nm with 18 mW output power
- Integrated current source, temperature controller, and detector amplifier
- PM and SM fiber options with or without furcation tubing
- Operates from single +5 V supply

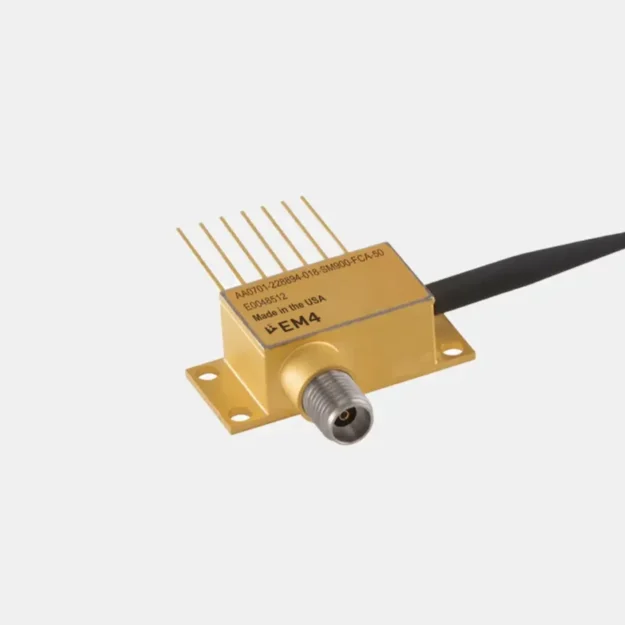

AA0701 Series
- C-band (1537-1565 nm) wavelength – 10 mW
- O-band (1310 nm) wavelength – 18 mW
- 50 ohm impedance
- Built-in isolator
- Ultrafast pulsing capability
- Rugged to shock and vibration

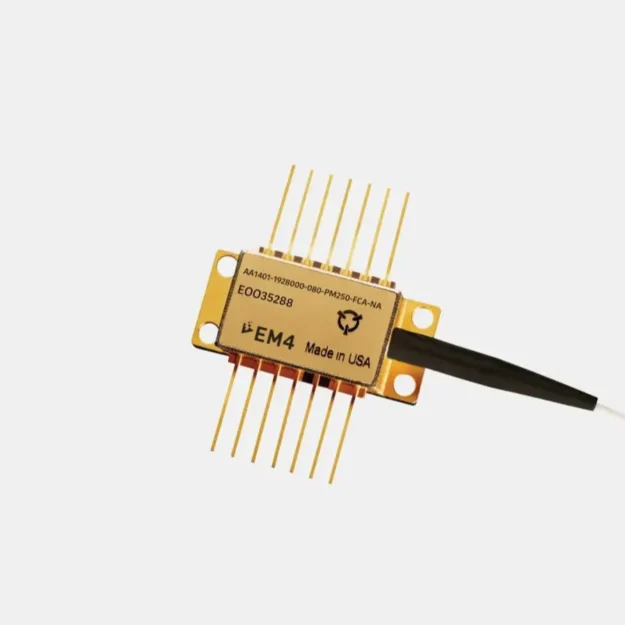

AA1401 Series
- C-band (1537-1565 nm) and L-band (1617 nm) wavelength
- 40-100 mW ex-fiber output options
- PM or SM fiber
- High isolation option
- Optional Bias-T

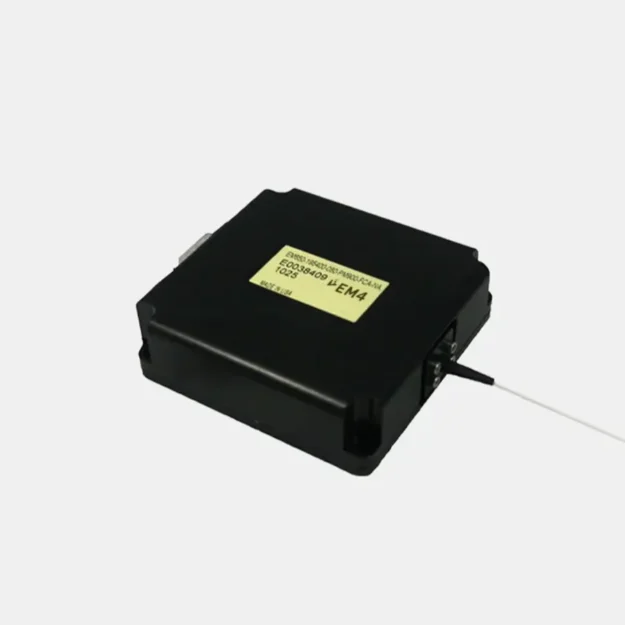

EM650 Series
- Laser driver with integrated AA14XX laser
- Full C-band coverage
- Integrated current source, temperature controller, and detector amplifier
- High optical output power
- Low RIN
- PM and SM fiber options with or without furcation tubing

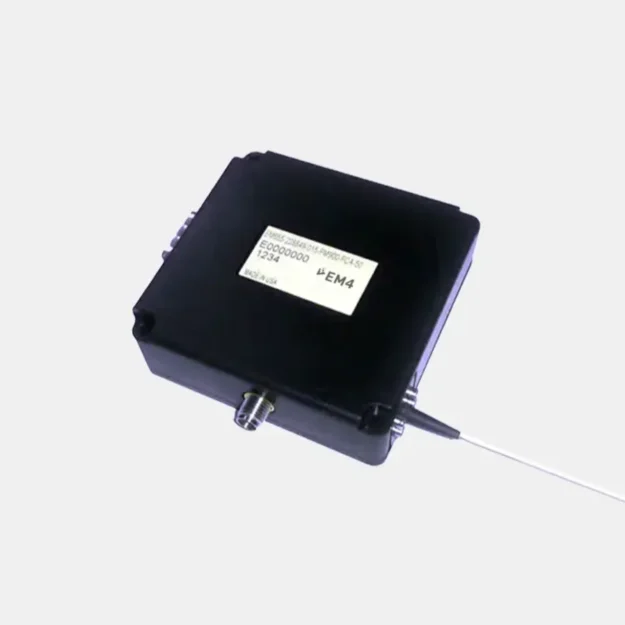

EM657 Series
- Laser driver with integrated AA07XX laser
- Lower line width <4 MHz
- C-band (1537-1565 nm) wavelength with 10 mW output power
- 1310 nm with 18 mW output power
- Integrated current source, temperature controller, and detector amplifier
- PM and SM fiber options with or without furcation tubing
- Operates from single +5 V supply
